Square Ceiling Diffuser – Two Way Throw

Model No. : ACD2

Specification:
Extruded aluminium square ceiling diffuser with two way throw from centre, and extruded aluminium core which is spring loaded and removable. Different construction available for flush type and tegular ceilings. Collar damper available as accessory for supply air.

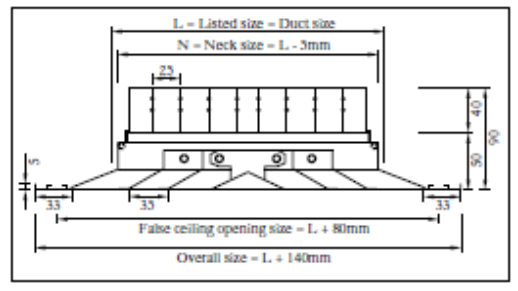

DESCRIPTION

The frame and blades are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
Louvered type core is fixed to the frame with aluminium pins loaded with steel springs. Core can be easily removable and interchangeable to allow for maximum flexibility in installation, maintenance and damper adjustment.
Damper is fixed rigidly to the frame by aluminium rivets. Fixing by spring clips as option.
Opposed blade damper is lever operated from the face opening of the diffuser after removing the internal core.
Damper blades are separated from its frame by nylon gears and bushes.
Discharges air in both the ways, either X or Y directions as per pattern arrangement.
Available in rectangular sizes as option.
Suitable for flush mounting in lay in type ceiling.

PRODUCT ORDER CHECKLIST

MODEL	OUTER SIZE	NECK SIZE	CEILING	ACCESSORIES	COLOUR
ACD2 Two Way	595×595	450×450	Plain / Tegular	Collar Damper (D)	Powder Coated
	450×450	375×375			Anodised
	375×375	300×300			Wood Finish
	300×300	225×225			Mill Finish
	225×225	150×150			Chrome Finish

*Required: Neck Size, Quantity and RAL Colour Code along with above specifications.

FIXING DETAILS

Option A: Screw on front side of flange

Option B: Concealed screw on inside surface of frame

Option C: Placement of diffuser directly on the false ceiling frame.
