Single Deflection Grille

Extruded Aluminium Single Deflection Grille with Aerofoil Adjustable Blades. Horizontal and Vertical orientations can be made. Collar Damper available as an accessory for Supply Air.

  • The frame and blades are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
  • Frame is separated from the aerofoil deflection blades with nylon bushings. This method of assembly assures quiet, smooth and rattle free operation.
  • Deflection blades can be adjusted manually and individually in the horizontal or vertical plane to obtain optimum air distribution.
  • The frame is constructed with 45o corners and mechanically reinforced with corner cleats for rigidity and aesthetics.
  • Maximum effective pressure areas can be achieved when the blades are positioned at 0° horizontal position.
  • Length from 0.2 meter to 3.6 meter is available as single piece.
  • Listed Width in mm 100, 150, 200, 250, 300 mm.
  • Non standard sizes available as an option.

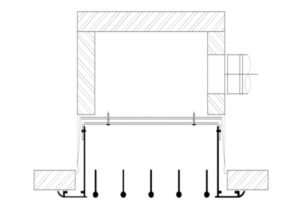

Option A: Screw on front side of flange

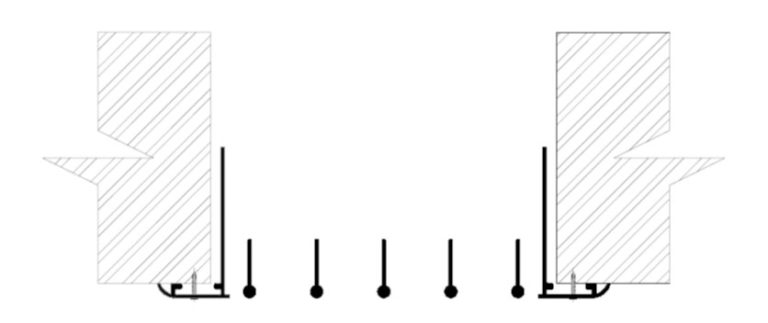

Option B: Concealed screw on inside surface of flange

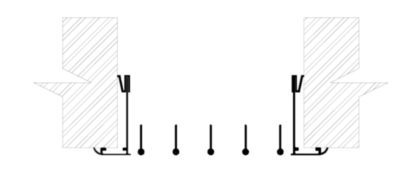

Option C: Optional ‘C’ Clamp can be provided for concealed fixing.

1.5 Single Deflection Grille – Fixed horizontal Blade at 45 Deg DeflectionDownload
1.6 Single Deflection Grilles & Registers – 0 Deg DeflectionDownload
1.7 Single Deflection Grilles & Registers – 45 Deg DeflectionDownload
