Linear bar Grille

Extruded Aluminium Linear Bar Grille with fixed Aerofoil Blades available in 0/15/30/45 degree deflection with rigid frame of 16mm flange as standard. Collar Damper available as accessory for Supply Air.

  • Frame and face bars are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
  • Horizontal face bars with 0°/15°/30°/45° – 1 way or two way throw are fixed rigidly to the frame with round aluminium pipes.
  • Grilles are fixed rigidly with opposed blade damper by rivets. This ensures positive control over the air stream. Damper blades can be gear operated from the face opening.
  • For perfect unbroken appearance of continuous runs, alignment strips are provided as an option.
  • Total structure is manufactured by mechanical assembly, assuring rigidity and to maintain straight line appearance.
  • The frame is constructed with 45o corners and mechanically reinforced with corner cleats for rigidity and aesthetics.
  • Length from 0.2 meter to 3.6 meter is available as single piece.
  • Listed Width in mm 75, 100, 150, 200, 250, 300 mm.
  • Non standard sizes available as option.

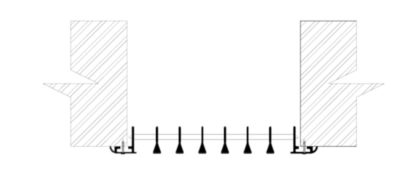

Option A: Screw on front side of flange

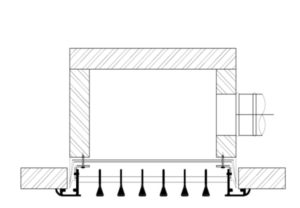

Option B: Concealed screw on inside clamp built in to the grille.

Option C: Optional ‘C’ Clamp can be provided for concealed fixing.

1.1 Double Deflection Linear Bar Register – 15 deg – 2 Way – 12 mm spacingDownload
1.2 Double Deflection Linear Bar Register – 15 deg – 1 Way – 12 mm spacingDownload
1.3 Double Deflection Linear Bar Register – 0 deg – 12 mm spacingDownload
1.4 Single Deflection Linear Bar Register – 15 deg – 2 Way – 12 mm spacingDownload
1.5 Single Deflection Linear Bar Register – 15 deg – 1 Way – 12 mm spacingDownload
1.6 Double Deflection Linear Bar Register – 0 deg – 12 mm spacingDownload
1.7 Double Deflection Linear Bar Register – 15 deg – 2 Way – 6 mm spacingDownload
1.8 Single Deflection Linear Bar Register – 15 deg – 2 Way – 6 mm spacingDownload
