Disk Valve
Disc Valves are used for exhaust air applications in toilet exhaust, aisle ways, lobby’s etc. Disc Valves can be made of aluminium, steel or plastic construction. The disc can be adjusted by rotation to increase or decrease the airflow as required.
- Frame and disc is made of high quality steel or aluminium sheet construction with powder coating to RAL colours.
- Disc is attached to the frame by threaded rod.
- Air flow can be adjusted by regulating the cone up or down (+A or –A).
- These valves can be used for supply, exhaust and ventilation applications.
- Disc valves are best suited to air distribution systems handling relatively low air flow rates.
- Can be mounted in wall, ceiling or exposed air ducts with mounting rings.
- Recommended for exhaust of damp air in areas such as toilets, bathrooms and kitchens.
- Extended neck ring of 4 inch eight can be provided as option.

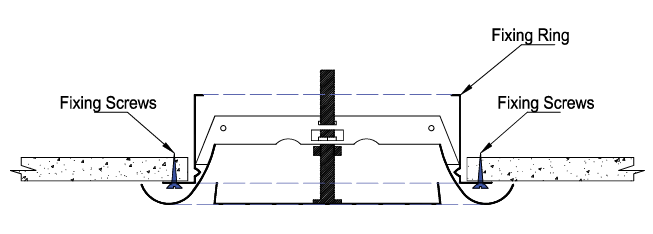

Step-1. Mounting ring has to be fixed into the duct.
Step-2. The frame can now be fixed into the mounting ring.
