Jet Nozzle

Aluminium Jet Nozzle with rotatable eye ball spout is used for spot cooling applications and delivers a powerful stream over long distances.

  • Eyeball jet nozzles are highly suitable for delivering a powerful stream of air over long distances.
  • Its ability to deliver an accurate airstream makes it ideal for spot cooling applications.
  • It’s angular movement allows the airstream to be delivered through a wide area of direction either in full jet position or in reduced jet position.
  • This diffuser spout is fully reversible, rotating through 180 deg.
  • The diffuser can be fixed directly to the round duct.
  • The diffuser is suitable for long throw patterns with trajectory control.
  • Gasket is sealed around the back of the spout to avoid air leakage as option.

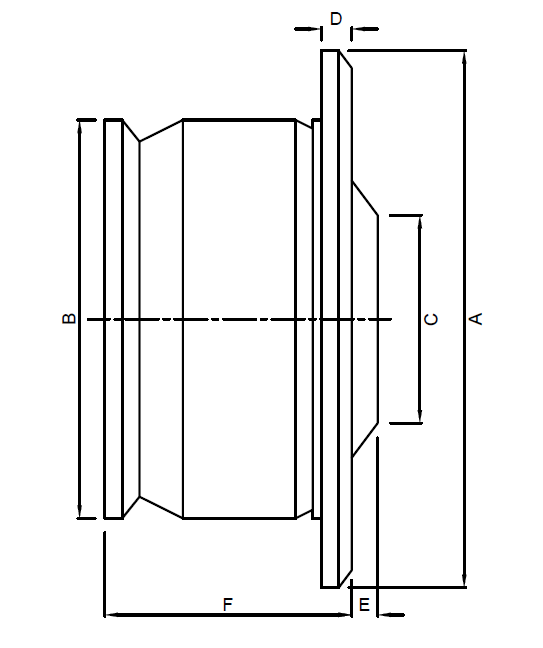

SizeABCDEF
160 216158821110106
200 2731981081614127
250 3182481361623159
315 4003131742329189
400 4833982302447223
